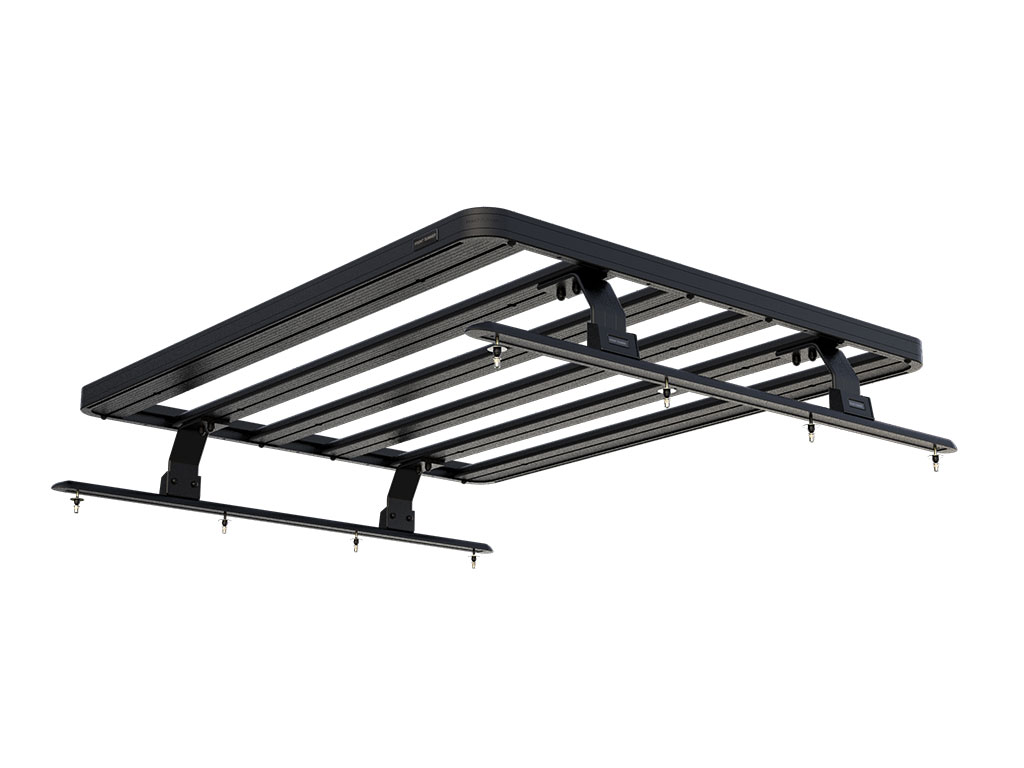

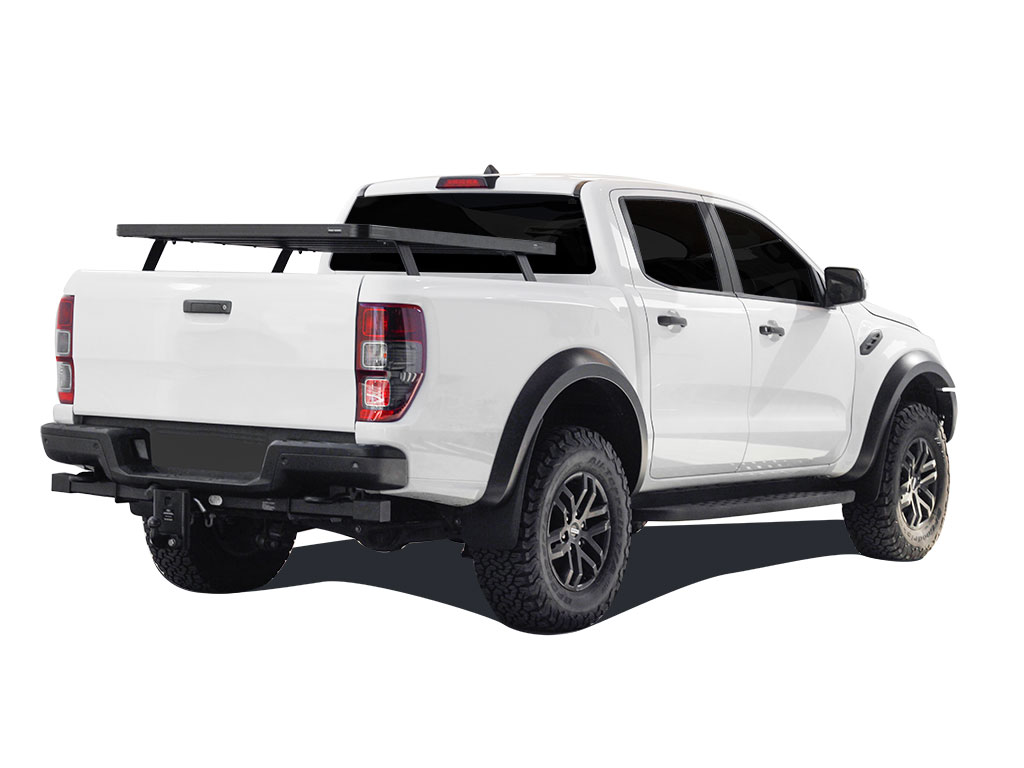

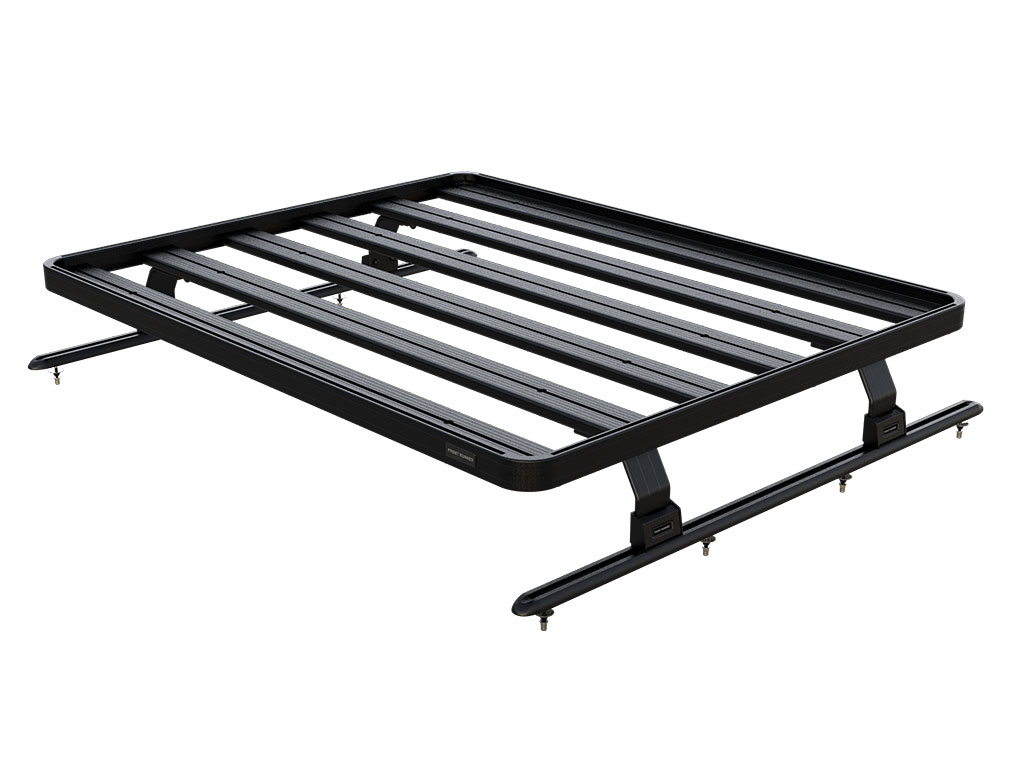

Pickup Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1156(L)

Spezifikationen

Artikel-Nr.

KRRT014T

Downloads

Fittinginstruction Fittinginstruction Fittinginstruction

Beschreibung

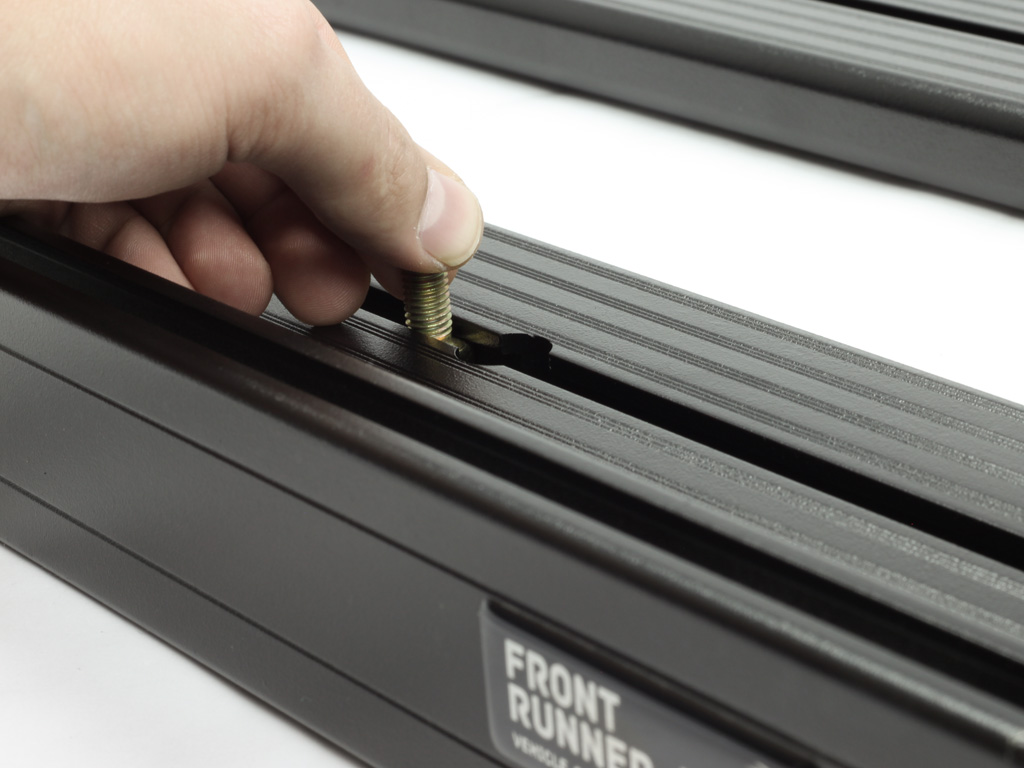

KRRT014T - Bakkie Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1156(L) - by Front Runner Consisting of: 2x LASS028 - Pick-Up Roll Top Leg Mount1x RRSTJ06 - SLII Tray - 1425mm(W)X1156mm(L)1x TRCA003 - Canopy Tracks / 1150mm(L) Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 27.79kg (61.27lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width: 455mm (18'') Length: 1730mm (68'') Height: 265mm (10'') Shipping Weight: Weight: 28.25kg (62lbs)This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1156mm), 2 Tracks and 4 Pickup Roll Top Leg Mounts that fit into the Tracks. All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. All Dometic Front Runner Series racks are backed by a 5‑year warranty* Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details.Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation.   * Hinweis: Eine maximale Fahrgeschwindigkeit von 130km/h sollte eingehalten werden, wenn das Fahrzeug mit einem Front Runner Dachträger oder Querträger Kit ausgestattet ist.
