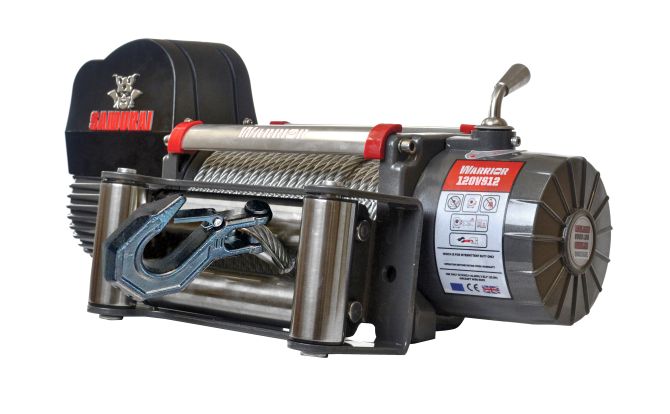

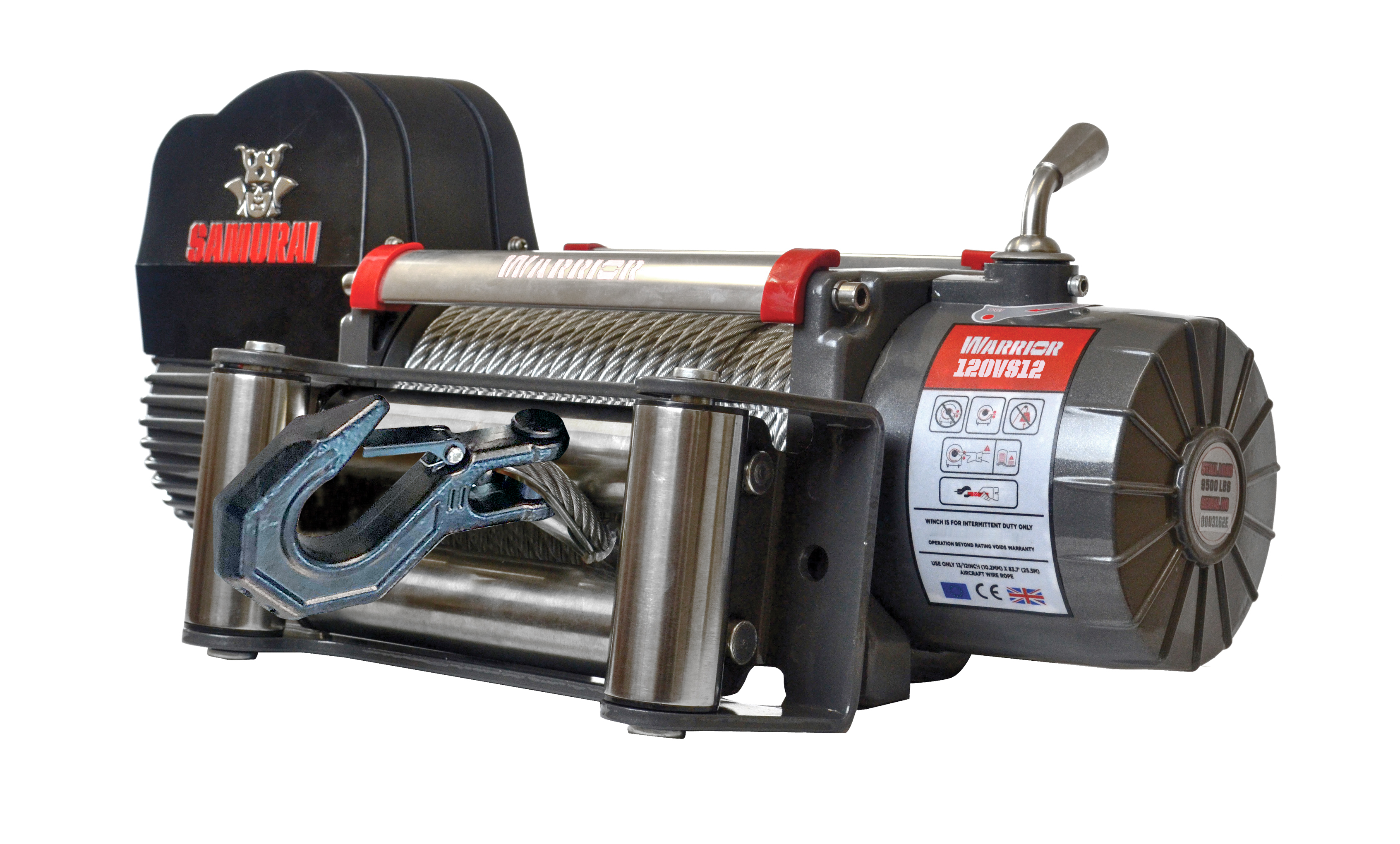

Samurai Next Generation 12000 elektrische lier 24 volt met staalkabel
Warrior | 5443 kg 12000 lbs | 24 Volt
Warrior Samurai S12000_x000D_ Elektrische lier 12000 Lbs / 5400 kg. 12 of 24 volt
- Meer dan 3500 artikelen
- Meer dan 20 jaar ervaring & kennis
- Het breedste aanbod 4x4 producten
- Vandaag voor 15.00u besteld morgen in huis
Specificaties
| Product nr. | 120VS24 | |
| Merk | Warrior | |
| Voltage | 24 Volt | |
| Trekkracht in Kilo's (LBS) | 5443 kg 12000 lbs |
Beschrijving
Ideaal voor het recovery en 4x4-toepassingen. Uitstekende functies ,onder meer hoge kwaliteit series wond motor met dubbel geaealde messing fittingen, waterdichte heavy duty schakelaars, dubbel gesealde onderhoudsvrije trommel ,_x000D_lagers zijn onderhoudsvrij, stil, efficiënt, volledig stalen planetaire overbrenging. Wordt geleverd met roestvrij stalen bevestigingsmateriaal en rollenvenser als standaard. Compleet met zware geïntegreerde draadloze afstandsbediening ( alleen de 12 volt varianten ). De "next generation" is voorzien van een externe rem buiten de trommel dus heeft geen last van hitte ontwikkeling en is daardoor beter geschikt voor het gebruik van lier touw.
_x000D__x000D_
_x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D_
| Rated Line Pull | 12000 lbs (5443 kg) |
|---|---|
| Motor | 12v : 6.7hp / 5.0kw 24v : 8.0hp / 6.0kw |
| Gearing | 253:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 223mm (2.48 x 8.78 in) |
| Cable - Dia x L | 10.2mm x 26m (0.4 in x 85 ft) |
| Dimensions | 559 x 160 x 248mm (22 x 6.3 x 9.8 in) |
| Mounting Pattern | 254 x 114 mm (10 x 4.5 in) |
| Weight kg | 44 kg (97 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
_x000D_
_x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D_
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12000 (5443) | 15.1 (4.6) |
| 2 | 9563 (4338) | 34.1 (10.4) |
| 3 | 7907 (3586) | 57.7 (17.6) |
| 4 | 6755 (3064) | 83.7 (25.5) |
_x000D_
_x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D__x000D_
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 29.5 (9.0) | 37.7 (11.5) | 50 | 45 |
| 6000 (2721) | 10.5 (3.2) | 12.1 (3.7) | 240 | 140 |
| 8000 (3629) | 8.2 (2.5) | 9.8 (3.0) | 280 | 180 |
| 10000 (4535) | 5.9 (1.8) | 7.2 (2.2) | 320 | 220 |
| 12000 (5443) | 4.6 (1.4) | 5.2 (1.6) | 380 | 250 |
_x000D_
