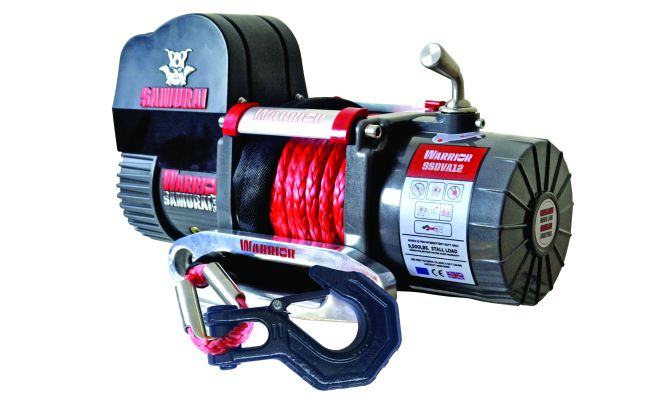

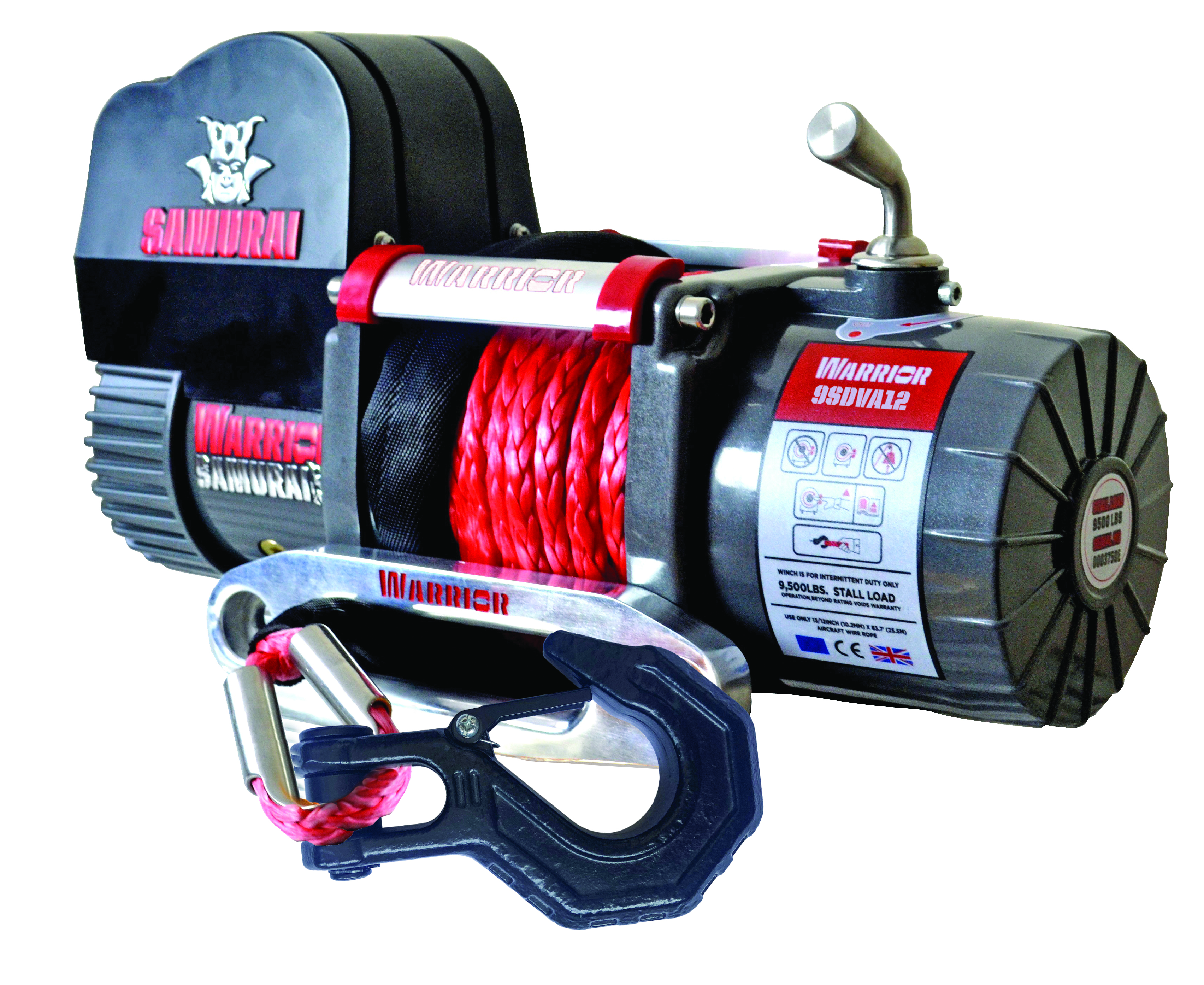

Samurai Next Generation 9500 Short Drum Winch 12 volt Armortek Rope
Warrior | 9500 lbs (4309 kg) | 12 Volt
The narrow drum version of the best selling 9500 Samurai. A total width of 456 mm ensures this is the perfect product for limited space!
The Short Drum winch is the preferred choice of the British Military on specialist vehicles currently serving in action. The synthetic rope version has a total weight of just 24kg!
Our top performance winches just got better!
Our premium 'Next Generation' Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum, perfect for Armortek Ropes.
Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
Outstanding Features
- 4 Pin Waterproof Connector
- Solid Brass Contacts Direct to the Motor
- Silver Copper Motor with Copper Brush Holders
- Chip Resistant Powder Coated Finish
- Extensive Waterproof Sealing to IP68 Standard
- Removable Heavy Duty Hook
- Wireless 2.4G Upgraded Remote (12V only)
- Aluminium Hawse Fairlead
- HRC50 Full Steel Gears
- Revolutionary Design External Brake
- Laser Etched Extruded Aluminium Tie Bars
- 600 amp Silver Tip Contactor
- More than 3500 articles
- More than 20 years of experience & expertise
- We have the widest range of off road products
- Ordered today before 3 p.m. shipped the same day
Specifications
| Product no. | 95DVA12 | |
| Cable Length in Meters | 15 meters | |
| Voltage | 12 Volt | |
| Weight in kilograms | 26 kg | |
| Winch Speed Meters per Minute (unloaded) | 10,2m | |
| Drawbar pull in kilograms (LBS) | 9500 lbs (4309 kg) | |
| Brand | Warrior | |
| Cable choice | Synthetic |
Description
| Rated Line Pull | 9500 lbs (4309 kg) |
|---|---|
| Motor | 12v : 6.1hp / 4.6kw 24v : 7.8hp / 5.8kw |
| Gearing | 196:1 |
| Braking Action | External Brake |
| Drum Size - Dia x L | 63 x 120mm (2.48 x 4.72 in) |
| Cable - Dia x L | 9.2mm x 15m (0.36 in x 49 ft) |
| Dimensions | 456 x 160 x 248mm (18 x 6.3 x 9.8 in) |
| Mounting Pattern | 151 x 114 mm (5.94 x 4.5 in) |
| Weight kg | 26 kg |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 9500 (4309) | 9.8 (3.0) |
| 2 | 7600 (3447) | 24.6 (7.5) |
| 3 | 6200 (2812) | 42.7 (13.0 |
| 4 | 5400 (2400) | 45.9 (14.0) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 33.4 (10.2) | 44.3 (13.5) | 50 | 45 |
| 2000 (907) | 17.4 (5.3) | 20.3 (6.2) | 120 | 90 |
| 3000 (1360) | 15.4 (4.7) | 17.3 (5.3) | 150 | 105 |
| 6000 (2721) | 10.1 (3.1) | 12.4 (3.8) | 260 | 190 |
| 8000 (3628) | 8.2 (2.5) | 9.5 (2.9) | 300 | 230 |
| 9500 (4309) | 7.2 (2.2) | 8.5 (2.6) | 320 | 250 |
