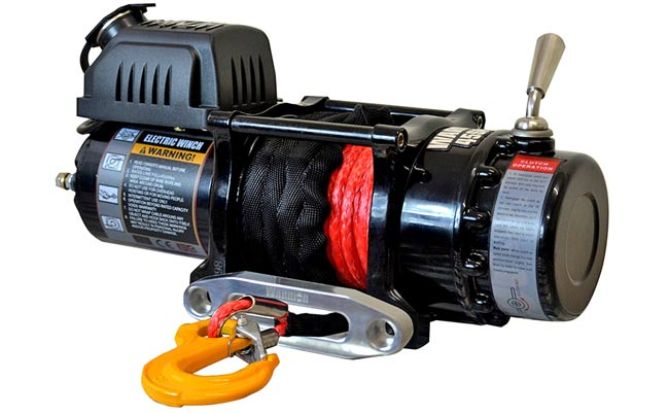

Ninja 4500 Electric Winch Synthetic rope 24 volt
Warrior | 4500 lbs (2041 kg) | 24 Volt
€ 355,74
incl. VAT
High quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market. The silky smooth performance and the full load holding brake make it the perfect solution for high spec applications.
Outstanding Features
Power in and Power out
High Torque Motor
HD Waterproof Contactors
Full Steel Planetary Gearing
Mount Plate as Standard
Full Load Holding Break
Can fit tow ball mount
- More than 3500 articles
- More than 20 years of experience & expertise
- We have the widest range of off road products
- Ordered today before 3 p.m. shipped the same day
Specifications
| Product no. | 45SPA24 | |
| Voltage | 24 Volt | |
| Winch Speed Meters per Minute (unloaded) | 11.6 ft 3,6 meter p/minute | |
| Brand | Warrior | |
| Cable Length in Meters | 15 meters | |
| Weight in kilograms | 13 kg | |
| Drawbar pull in kilograms (LBS) | 4500 lbs (2041 kg) | |
| Cable choice | Synthetic |
Description
| Rated Line Pull | 4500 lbs (2041 kg) |
|---|---|
| Motor | 12v: 2.4kw/3.2hp 24v: 2.9kw/3.9hp |
| Gearing | 172:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 45 x 97mm (1.77 x 3.82 in) |
| Cable - Dia x L | 6mm x 15m (0.24 in x 49 ft) |
| Dimensions | 360 x 126 x 165mm (14.17 x 5 x 6.5 in) |
| Mounting Pattern | 129 x 96 mm (5.08 x 3.8 in) |
| Weight kg | 13 kg (29 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 4500 (2041) |
| 2 | 3642 (1652) |
| 3 | 3060 (1388) |
| 4 | 2638 (1196) |
| Line Pull lbs (kgs) |
Line Speed 12v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|
| 0 | 11.6 (3.6) | 20 | 15 |
| 1500 (680) | 9.2 (2.8) | 70 | 40 |
| 2500 (1134) | 7.8 (2.4) | 100 | 65 |
| 3500 (1587) | 6.6 (2.0) | 140 | 80 |
| 4500 (2041) | 4.9 (1.5) | 200 | 130 |
